Doro Pump V3, feeder drill T-series

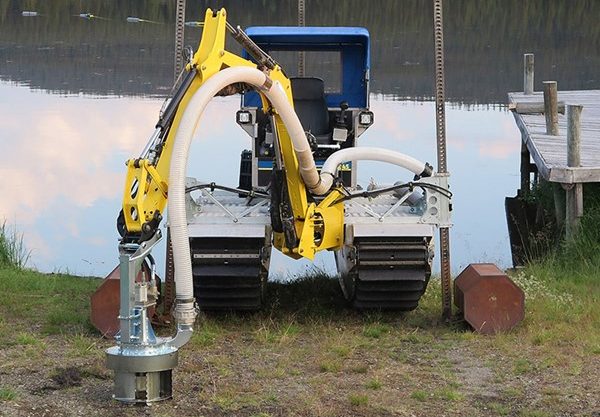

The Doro pump V3 mounted on the Doro Digger provides good control over the dredging operation. The system features a rotating head and knives mounted at the intake, ensuring an even feed of material into the Doro pump. The feeder system’s wings guide the sediment into the pump and minimise water turbidity caused by disturbed sediment (environmental dredging).
Maximum capacity: 130 m³/hour
Maximum capacity with lifting height:
1 metre: 120 m³/hour
2 metres: 110 m³/hour
3 metres: 100 m³/hour
The lifting height, hose length, type of sediment, etc. affect the maximum capacity.
Maximum dredging depth with Doro Pump V3: 3.5 m
Maximum depth of outrigger pontoons, stabilisation against the bottom (dredging): 2 m
Working width, feeding system: 400 mm
Weight, Doro Pump V3: 88 kg
Standard kit weight: 86 kg
Doro Pump V3 Standard kit:
Supplied with hydraulically driven auger feed and 8 m spiral hose incl. couplings, 25 m flat hose Ø 105 mm incl. quick couplings and brackets for flotation cushions, 10 flotation cushions, 5 m flat hose with quick coupling and end nozzle, 1 set of brackets for dredging hose.
