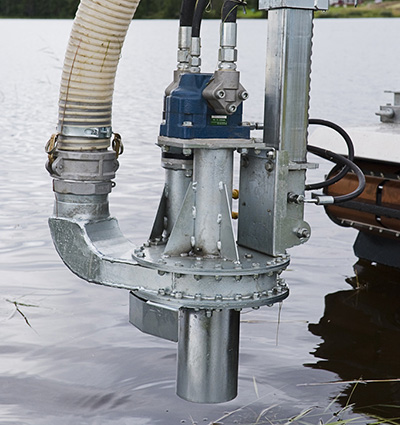

Doro Pump with feeding screw

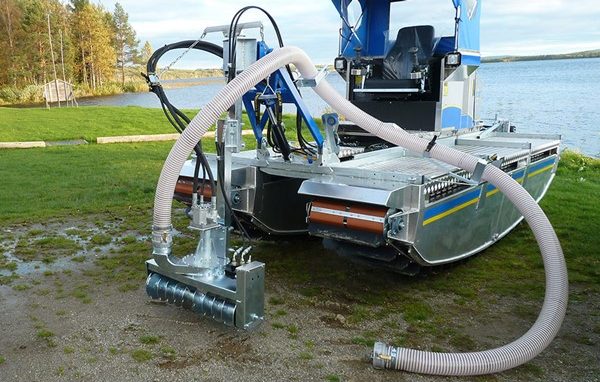

The Doro pump is a hydraulically operated dredge pump with a screw feeder that breaks off and feeds sediment into the pump intake. The Doro pump is easy to attach and changing to another tool takes only a few minutes. The Doro pump is delivered ready for assembly on the lifting arm.
The Doro pump can be delivered with the following accessories: hydraulically operated telescopic extension to increase the dredging depth and facilitate maneuvering.
Doro pump standard kit:
1 hydraulically operated feeding screw, 6 m spiral tubing incl. couplings, 25 m flat tubing Ø 105 mm with camlock quick coupling with buoyancy tube.
10 floaters, 5 m flat tubing with quick coupling and end nozzle, 1 suction nozzle, 1 X4 attachment 0.9 m, 1 extension 0.7 m, 1 bracket set for dredging hose.
Suction dredging in pure sand is done using a suction tube which is mounted in the pump intake (the feeding screw is removed). The suction tube is included in the standard kit.
Doro Pump with Feeding Screw
Weight: 94 kg
Dredging depth: 1.6 m
Working width: 0.8 m
The Doro pump is supplied with a standard kit.
Standard kit weight: 86 kg
Maximum capacity: 130 m³/hour
Maximum capacity at lifting height:
1 metre: 120 m³/hour
2 metres: 110 m³/hour
3 metres: 100 m³/hour
The lifting height, hose length, type of sediment and other factors affect the maximum capacity. To ensure a uniform sediment flow, knives are mounted at the pump intake.
