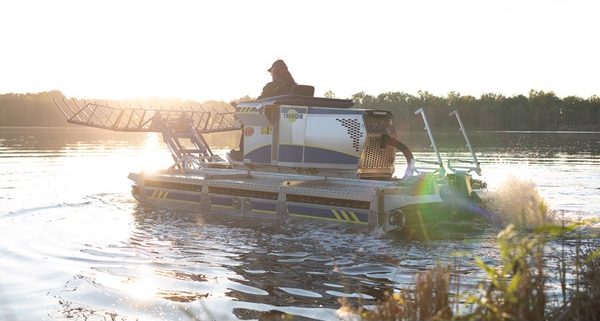

T50 – Built for the Most Demanding Truxor Applications
The Truxor T50 is the most powerful model in the T-Series, designed for use with high-demand tools and challenging working conditions. It features a common rail diesel engine that complies with EU Stage V and EPA Tier 4 emissions standards, paired with an advanced hydraulic system to deliver strong, reliable performance. The T50 provides high output even at low engine speeds, producing excellent performance starting at 1400 rpm. Operating at lower rpm helps reduce fuel consumption and noise while maintaining the power needed for demanding jobs.
Truxor T50
- MOTOR: Hatz 3H 50 TICD liquid cooled 3-cyl. Turbo, Intercooler, Common-rail diesel, Diesel Particle Filter (DPF). 36,4 kW/49,4 hp at 2400 rpm (Gross effect) Emission standards: Euro V, EPA Tier 4 final. Approved for syntetic fuels according to EN15940. Combined cooler for hydraulic oil and water. Engine rpm are limited to 2600 rpm based on hydraulic pump max rpm.
- FUEL TANK: 35 l
- COOLING SYSTEM: Combined engine/hydraulic/intercooler system. The air intake of the radiator is equipped with a filter (prevent dirt from entering the radiator cells ). Thermostat controls the hydraulic oil temperature, improving machine performance.
- ELECTRIC SYSTEM: 12V/150 Amp, 60 ah battery. Automatic stop function if the engine overheats or the oil pressure is too low. Warning system for driving at maximum slope. 4 LED work lights.
- RIGHT JOYSTICK: Lifting, tilting, move cabin forward and rear (weight distribution), control of hydraulic outlet 3 and hydraulic outlet 4.
- Hydraulic outlet 1 (front): Working pressure 140 bar. adjustable flow 0-20 l/min
- Hydraulic outlet 2 (front): Working pressure 130 bar. adjustable flow 0-11 l/min
- Hydraulic outlet 3 (front): Working pressure 200 bar. Adjustable flow 0-60 l/min
- Hydraulic outlet 3 (rear): Working pressure 200 bar. Adjustable flow 0-60 l/min
- Hydraulic outlet 4 (rear): Working pressure 130 bar. Adjustable flow 0-11 l/min.
- HYDRAULIC SYSTEM: Hydraulic pump with variable displacement (Load sensing controlled), 65 cm³/r. Hydraulic power: 26 kW/35hk.
- Hydraulic tank: 19 l, system 35 l. Cyclone technology forced ventilation. Environmentally friendly system with automatic stop of the engine if the oil level drops by more than 8 litres. (Minimises oil spills)
- Hydraulic valve: 9 functions.
- Control system: CAN bus based electronic control units with remote assistance.
- DIMENSIONS: Total length max. 5030 mm, min 4700 mm. Total width 2080 mm. Total height max 2600, min 2020 mm. Set weight : 1470 kg
- DRIVING SPEED: 0-100 m/min
- FRONT LIFT: Lifting power 350 kg, X4 bracket for fast change of tools. Semi-automatic locking of tools.
- DRIVERS SEAT: Ergonomically adjustable driver’s seat with thermostatically controlled electric heated seat. Folding cab. Adjustable controls.
- MATERIAL: Drive band (paddle track) of rubber. Paddles and slide rails in strong plastic. Pontoons manufactured of saltwater-resistant aluminium. Heat galvanised steel structure.
- DASHBOARD: Digital high resolution display for speed, engine temperature, oil pressure engine, timer, fuel gauge, hydraulic oil temperature, hydraulic pressure, hydraulic flow, emergency operation, on board diagnostics, clock etc.
- ITEM NO: 94-T50
- LEFT JOYSTICK: Driving forward/backward/right/left. Speed is controlled by a joystick and with precision driving controls. Control for hydraulic outlet 1, hydraulic outlet 2.
- OPTIONS: Hydraulic oil environmentally friendly. Panolin replaces standard hydraulic oil. 36 litre Item no: 94-T50E
