Doro Digger T-series, included outriggers

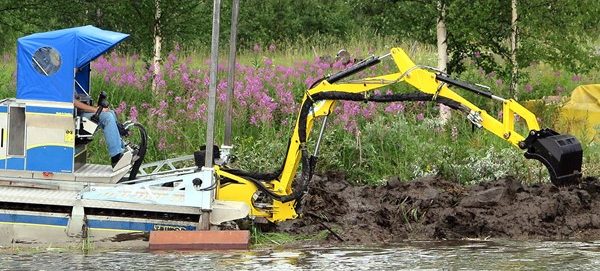

Doro Digger is an excavator attachment and a combined mounting system for various tools. The excavator arm is made of high-strength steel and features integrated mounts for dredging hoses and additional hydraulic lines. Doro Digger has been developed to maximise lifting height, digging depth and reach. The excavator attachment is equipped with a slewing system with dual hydraulic cylinders, providing high slewing torque. Doro Digger is fitted with a semi-automatic quick coupler DM X3, allowing fast and efficient tool changes.
Accessories for Doro Digger include digging buckets, the V3 dredge pump, the Orsi flail mower and the ESM 60 cutting knife.

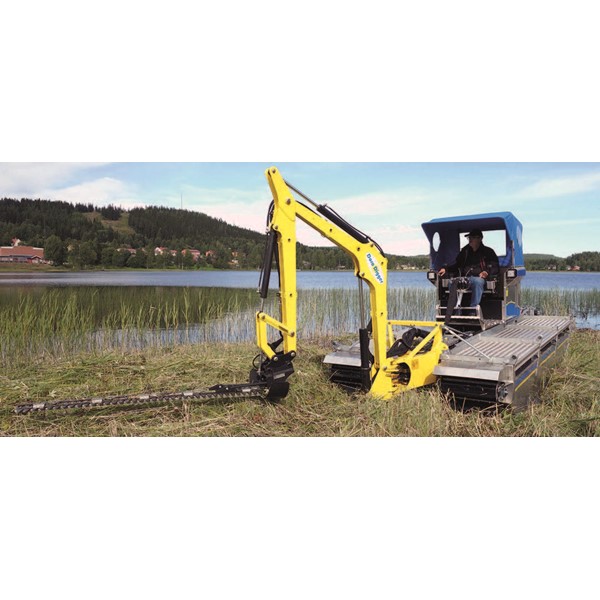

Doro cutter ESM 60 effectively cuts vegetation and bushes in shoreline areas and wetlands. The ESM 60 can cut most types of plants and bushes with a diameter of up to 25 mm. The knife beam has blades on both sides, allowing vegetation to be cut from both directions through the sweeping motion of the excavator arm. The large working width reduces driving distances in wetlands and minimises ground damage. The ESM 60 is not recommended for use below the water surface.

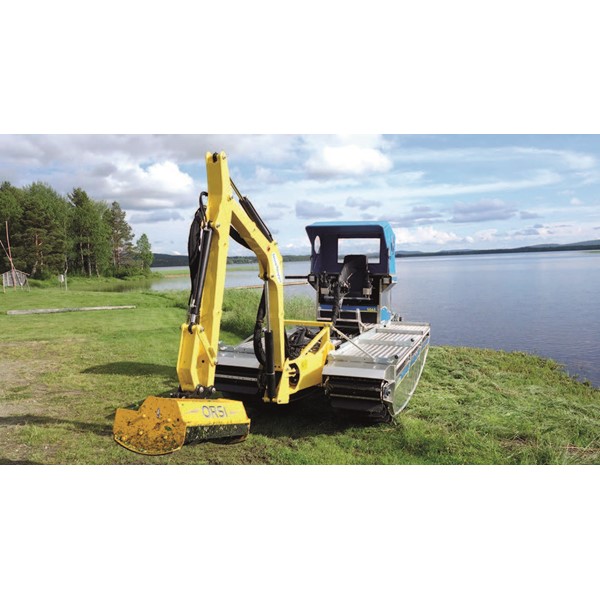

The Orsi flail mower is an effective tool choice when vegetation needs to be shredded and does not require collection. It is recommended for plants and bushes with a diameter of up to 25 mm.
The Doro tiller, mounted on the Doro Digger, provides a wide working radius. Material can easily be processed and relocated with the tiller to level uneven surfaces. Recommended for use only in wetlands with organic material. Tillers are not included.
The maximum dimensions related to depth and reach are calculated from the water surface.
Maximum excavation depth: 3.0 m
Maximum lifting height: 2.9 m
Maximum reach (radius): 4 m
Maximum reach (diameter): 8 m
Maximum slewing angle: 180°
Maximum depth of outrigger pontoons, stabilisation against the bottom (excavation): 2 m
Excavation unit weight: 232 kg
If the water depth is less than 0.1 m, the outriggers can be removed. This makes the machine lighter and easier to manoeuvre, for example in wetlands.
Buoyancy of outrigger pontoons: 2 × 145 kg.
Valve block equipped with a two-lever control system.
Semi-automatic quick coupler DM X3.
The Doro Digger cannot be used simultaneously with the propeller (91-104200).
Complete for mounting on T-series machines.
Outriggers and buckets not included.
